Dimensions
- Chassis
length 520 mm
width 250 mm (20.5" x 10")
- 290mm (11.5") wheelbase
- Top
of seat to rail height 320 mm (13")
- 100mm (4") diameter wheels (over
flange)
Optional
Extras
- Sprung buffers
- Custom colour choice
- No brake
|
Technical
- All welded steel chassis
- Ratchet hand brake with shoes to all wheels
- Minimum recommended radius 10' (3m)
- EN8 CNC machined wheels
- 8 springs for suspension

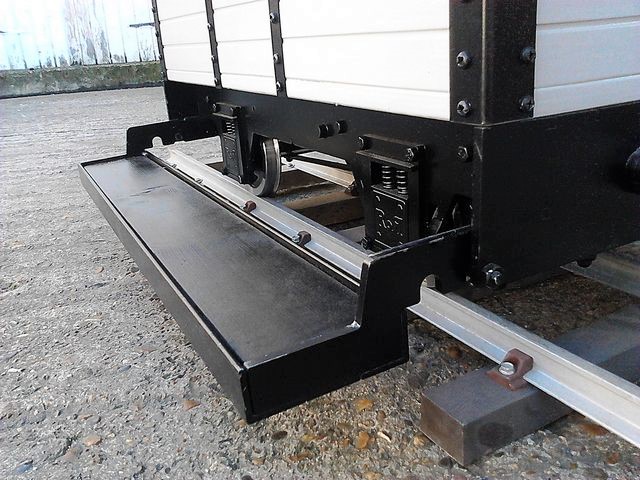

- Metal edged hook in foot boards - choice of two
positions
- 12mm birch plywood body
- Planking effect to inside and out
- Available in gloss grey as standard
- Glass/plastic commercial brake shoes
- Composite foam seat (25 mm hard foam + 25 mm
soft)
|
